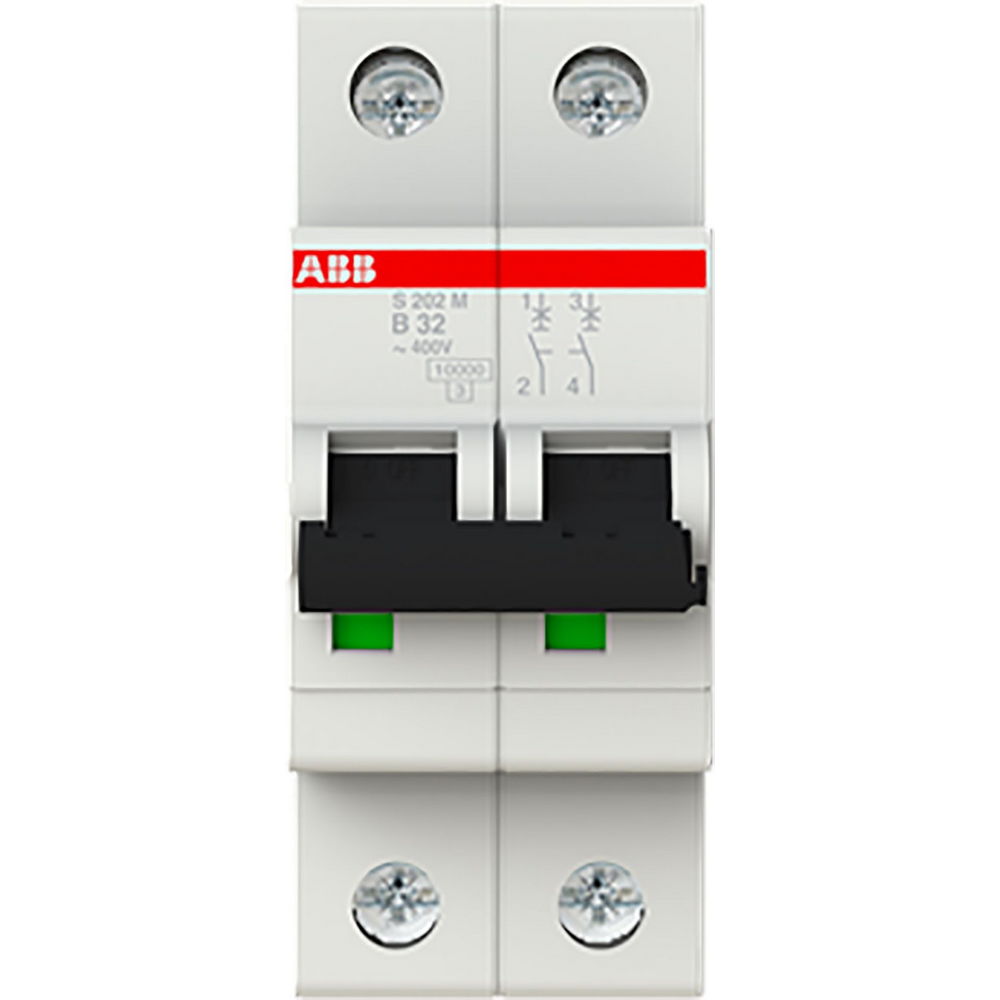

ABB S 202M B32 10 KA AUTOMAAT 2 POLIG B KAR 3 (1pc)

S 202M B32 10 KA AUTOMAAT 2 POLIG B KAR 3 | S202MB3210KAAUTOMAAT2POLIGBKAR3 Frequency: 50.000, Voltage type: AC/DC, Built-in depth: 69.000, Rated current: 32.000, Rated voltage: 400.000, Release characteristic: B, Rated insulation voltage Ui: 440.000, Current limiting class: 3.000, Over voltage category: 3.000, Pollution degree: 3.000, Width in number of modular spacings: 2.000, Explosion-proof: false, Power loss: 7.400, Degree of protection (IP): IP20, Number of protected poles: 2.000, Concurrently switching N-neutral: false, Rated short-circuit breaking capacity EN 60898: 10.000, Rated short-circuit breaking capacity IEC 60947-2: 15.000, Suitable for flush-mounted installation: false, Connectable conductor cross section solid-core: 0.750, Connectable conductor cross section multi-wired: 0.750, Ambient temperature during operating: -25.000, Flush-mounted installation: false, Additional equipment possible: true, Number of poles (total): 2.000, Rated short-circuit breaking capacity Icn EN 60898 at 400 V: 10.000, Rated short-circuit breaking capacity Icn EN 60898 at 230 V: 10.000, Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V: 25.000, Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V: 25.000, Rated impulse withstand voltage Uimp: 4.000
